DCDC CNVRT 12V 3.3V 5V -12V 400W

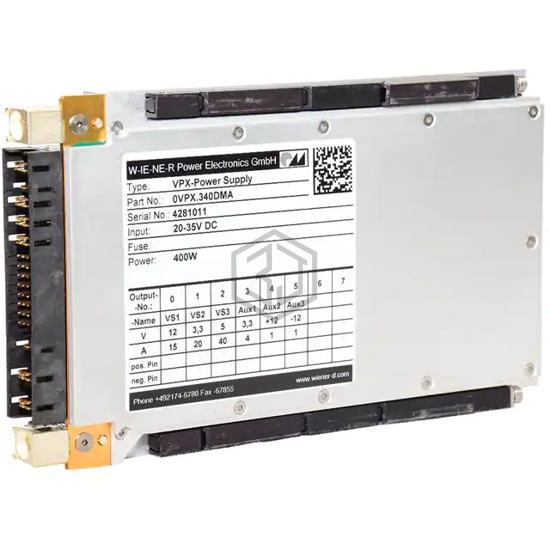

0VPX.340DMA is a DC DC Converters manufactured by W-IE-NE-R Power Electronics. DCDC CNVRT 12V 3.3V 5V -12V 400W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, current - output (max) 15A, 20A, 40A, 1A, 1A, 4A, size / dimension 6.69" L x 3.94" W x 0.8" H (170.0mm x 100.0mm x 20.0mm).
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed, Conformal Coated |
| Voltage - Input (Min) | 14V |
| Voltage - Input (Max) | 40V |
| Number of Outputs | 6 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | 5V |
| Voltage - Output 4 | -12V |
| Current - Output (Max) | 15A, 20A, 40A, 1A, 1A, 4A |
| Power (Watts) | 400W |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.69" L x 3.94" W x 0.8" H (170.0mm x 100.0mm x 20.0mm) |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for 0VPX.340DMA and get a quote within 24 hours.
