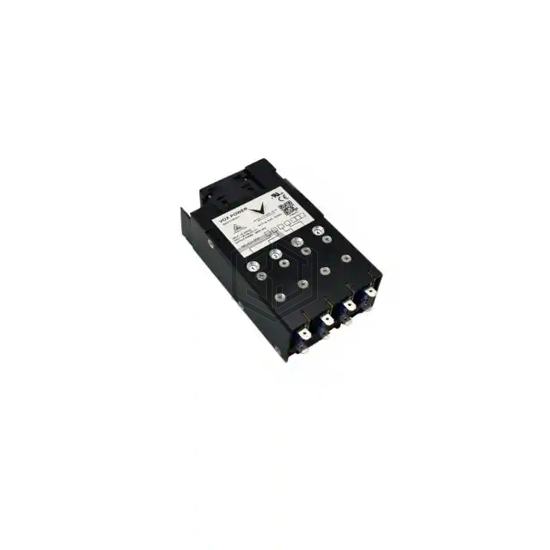

AC/DC CONVERTER 48V 12V 300W
NEVO+600M-5400-DK000 is a AC DC Converters manufactured by Vox Power Ltd.. AC/DC CONVERTER 48V 12V 300W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C, voltage - input 85 ~ 264 VAC, 120 ~ 300 VDC, size / dimension 5.27" L x 3.06" W x 1.61" H (133.8mm x 77.7mm x 41.0mm).
In Stock: 6,931
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 2 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 300 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3.75 A |
| Current - Output 2 | 5 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 300W |
| Applications | Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 86% |
| Operating Temperature | -20°C ~ 70°C |
| Features | Adjustable Output, Load Sharing, Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.27" L x 3.06" W x 1.61" H (133.8mm x 77.7mm x 41.0mm) |
| Approval Agency | CB, CE, CSA, UL |
| Standard Number | 60601-1 |
Submit your RFQ for NEVO+600M-5400-DK000 and get a quote within 24 hours.
