DC DC CONVERTER 2000V 1.5W

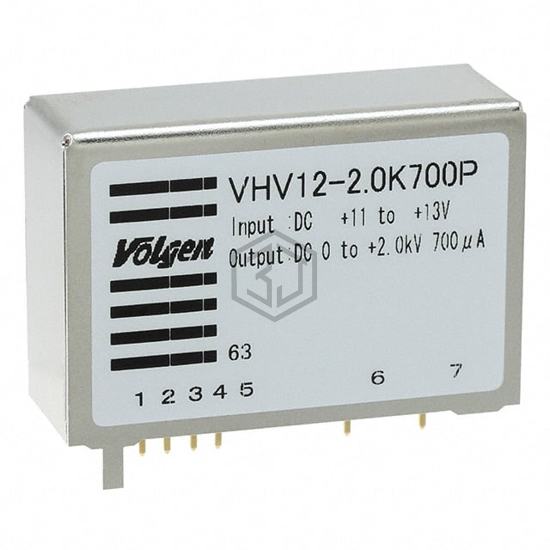

VHV12-2.0K700P is a DC DC Converters manufactured by Kaga Electronics USA. DC DC CONVERTER 2000V 1.5W. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 50°C, package / case 7-SIP Module, current - output (max) 700µA.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11V |
| Voltage - Input (Max) | 13V |
| Voltage - Output 1 | 2000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 700µA |
| Power (Watts) | 1.5 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP |
| Operating Temperature | -10°C ~ 50°C |
| Efficiency | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module |
| Size / Dimension | 1.73" L x 0.63" W x 1.18" H (44.0mm x 16.0mm x 30.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for VHV12-2.0K700P and get a quote within 24 hours.
