Visual Communications Company - VCC

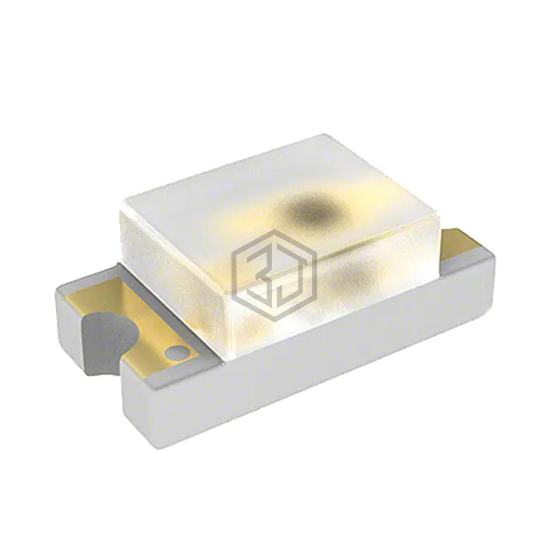

LED AMBER/GREEN DIFF 0603 SMD
CMDA20AYAA7D1S is a LED Indication - Discrete manufactured by Visual Communications Company - VCC. LED AMBER/GREEN DIFF 0603 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Amber, 2.2V Green, package / case 0603 (1608 Metric), color Amber, Green.
In Stock: 49,118
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Amber, Green |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 8mcd Amber, 15mcd Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Amber, 2.2V Green |
| Current - Test | 20mA Amber, 20mA Green |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 605nm Amber, 570nm Green |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.50mm |
Submit your RFQ for CMDA20AYAA7D1S and get a quote within 24 hours.
