Visual Communications Company - VCC

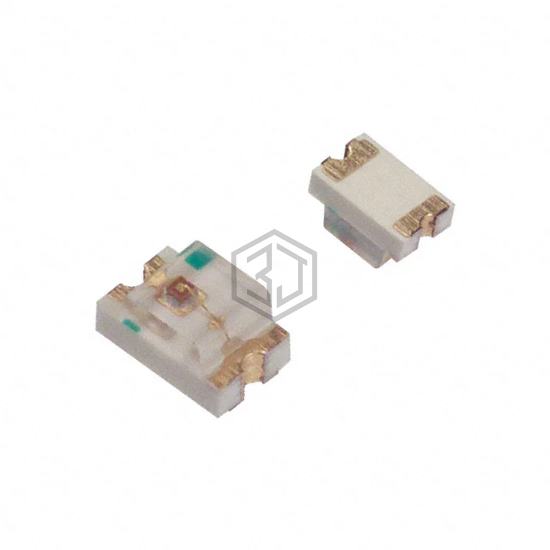

LED GREEN CLEAR 0805 SMD
CMD17-21UGC/TR8 is a LED Indication - Discrete manufactured by Visual Communications Company - VCC. LED GREEN CLEAR 0805 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V, package / case 0805 (2012 Metric), color Green.
In Stock: 64,408
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Color | Green |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 15mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 570nm |
| Features | - |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Height (Max) | 1.20mm |
Submit your RFQ for CMD17-21UGC/TR8 and get a quote within 24 hours.
