Vishay Beyschlag/Draloric/BC Components

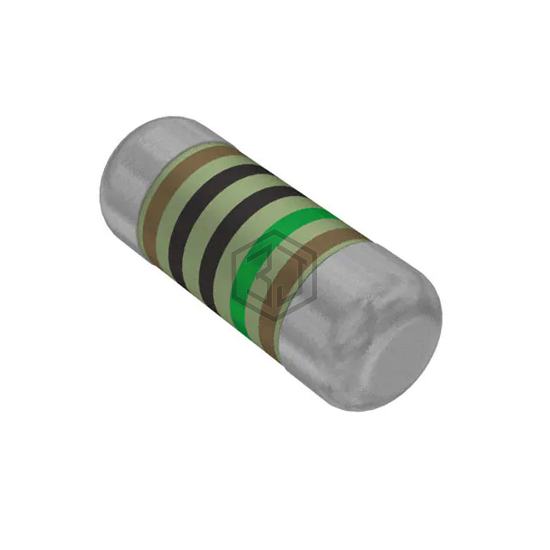

RES 10M OHM 1% 1/4W MELF 0204
SMM02040C1005FB000 is a Chip Resistor - Surface Mount manufactured by Vishay Beyschlag/Draloric/BC Components. RES 10M OHM 1% 1/4W MELF 0204. Key specifications: operating temperature -55°C ~ 125°C, package / case MELF, 0204, size / dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm), ratings AEC-Q200.
In Stock: 4,886
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 10 MOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | MELF, 0204 |
| Supplier Device Package | Mini MELF |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.055" Dia x 0.142" L (1.40mm x 3.60mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RL1220T-R010-J | Susumu | RES 0.01 OHM 5% 1/4W 0805 | 100% | View |
| MCU08050C1005FP500 | Vishay Beyschlag/Draloric/BC Components | RES 10M OHM 1% 1/5W 0805 | 88% | View |
| MMA02040C1005FA300 | Vishay Beyschlag/Draloric/BC Components | RES 10M OHM 1% 2/5W MELF 0204 | 75% | View |
| MMA02040C1005FB300 | Vishay Beyschlag/Draloric/BC Components | RES SMD 10M OHM 1% 0.4W 0204 | 75% | View |
| MMA0204MC1005FB300 | Vishay Beyschlag/Draloric/BC Components | RES SMD 10M OHM 1% 0.4W MELF | 75% | View |
| PFS35-0R01J1 | Riedon | RES 0.01 OHM 5% 35W TO263 DPAK | 64% | View |
Submit your RFQ for SMM02040C1005FB000 and get a quote within 24 hours.
