Vishay Beyschlag/Draloric/BC Components

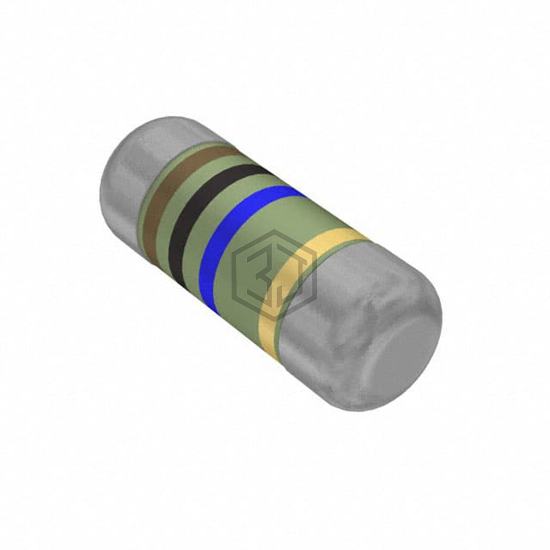

RES 10M OHM 5% 1/4W MELF 0204
SMM02040B1005JB300 is a Chip Resistor - Surface Mount manufactured by Vishay Beyschlag/Draloric/BC Components. RES 10M OHM 5% 1/4W MELF 0204. Key specifications: operating temperature -55°C ~ 125°C, package / case MELF, 0204, size / dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm), ratings AEC-Q200.
In Stock: 3,057
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 10 MOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | MELF, 0204 |
| Supplier Device Package | Mini MELF |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.055" Dia x 0.142" L (1.40mm x 3.60mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
