Vishay Beyschlag/Draloric/BC Components
PTC RESET FUSE 250V 100MA RADIAL

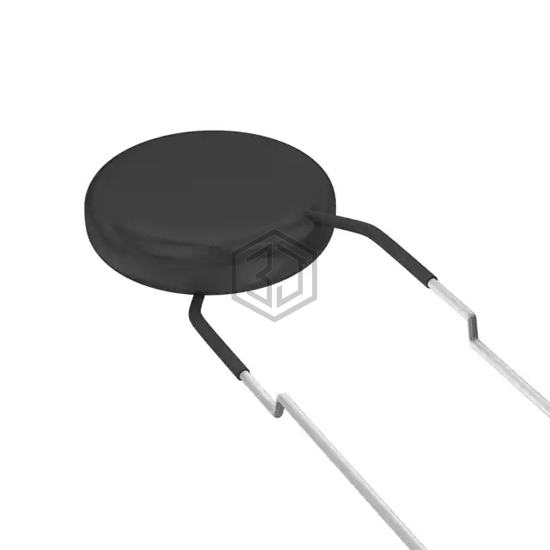

PTCTL8NR100HBE is a PTC Resettable Fuses manufactured by Vishay Beyschlag/Draloric/BC Components. PTC RESET FUSE 250V 100MA RADIAL. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case Radial, Disc, current - max 10 A.
In Stock: 379
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Ceramic |
| Voltage - Max | 250V |
| Current - Max | 10 A |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Trip (It) | 450 mA |
| Time to Trip | 40 s |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 10 Ohms |
| Operating Temperature | 0°C ~ 70°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.535" Dia x 0.236" T (13.60mm x 6.00mm) |
| Height - Seated (Max) | 0.732" (18.60mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
Submit your RFQ for PTCTL8NR100HBE and get a quote within 24 hours.
