Vishay Beyschlag/Draloric/BC Components

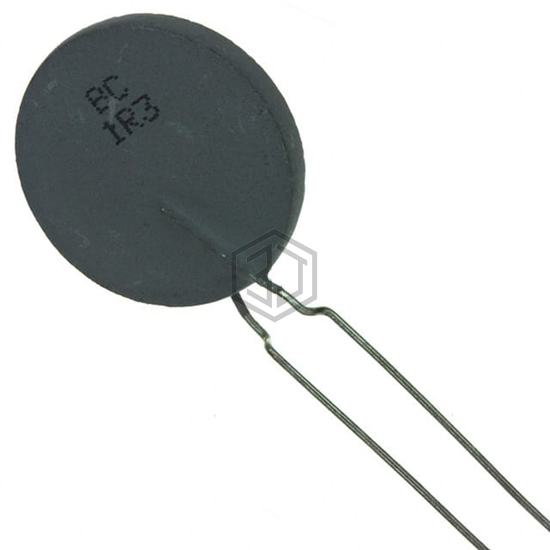

PTC RESET FUSE 145V 1A RADIAL
PTCCL21H102FBE is a PTC Resettable Fuses manufactured by Vishay Beyschlag/Draloric/BC Components. PTC RESET FUSE 145V 1A RADIAL. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case Radial, Disc, current - max 13 A.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Ceramic |
| Voltage - Max | 145V |
| Current - Max | 13 A |
| Current - Hold (Ih) (Max) | 1 A |
| Current - Trip (It) | 1.5 A |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 1.3 Ohms |
| Operating Temperature | 0°C ~ 70°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.807" Dia x 0.197" T (20.50mm x 5.00mm) |
| Height - Seated (Max) | 1.004" (25.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
