Vishay Beyschlag/Draloric/BC Components
PTC RESET FUSE 600V 10MA RADIAL

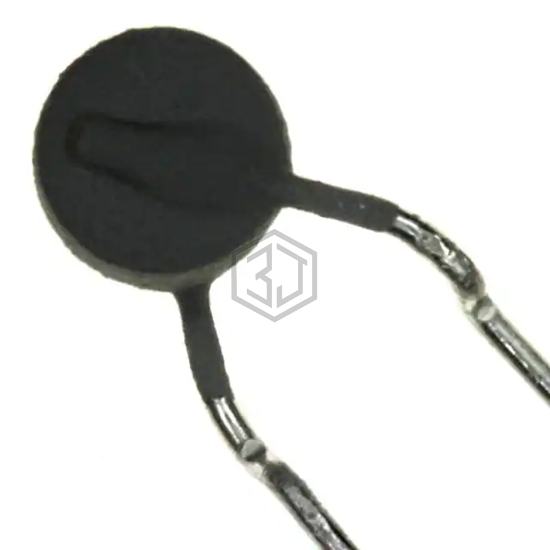

PTCCL10H010SBE is a PTC Resettable Fuses manufactured by Vishay Beyschlag/Draloric/BC Components. PTC RESET FUSE 600V 10MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, package / case Radial, Disc, current - max 2 A.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Ceramic |
| Voltage - Max | 600V |
| Current - Max | 2 A |
| Current - Hold (Ih) (Max) | 10 mA |
| Current - Trip (It) | 50 mA |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 400 Ohms |
| Operating Temperature | -20°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.394" Dia x 0.256" T (10.00mm x 6.50mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.320" (8.12mm) |
Submit your RFQ for PTCCL10H010SBE and get a quote within 24 hours.
