Vishay Beyschlag/Draloric/BC Components

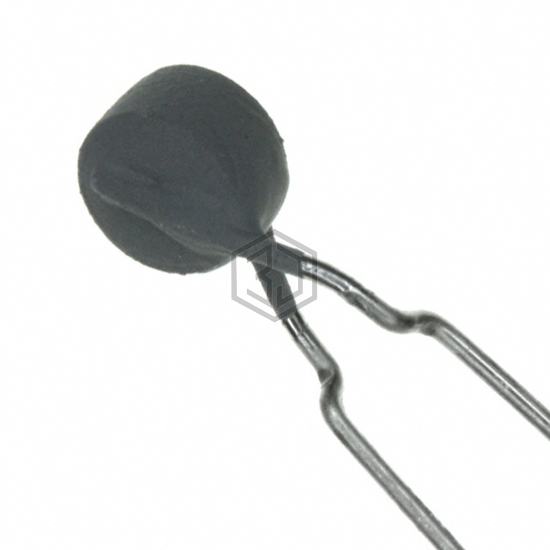

PTC RESET FUSE 265V 95MA RADIAL
PTCCL05H950HBE is a PTC Resettable Fuses manufactured by Vishay Beyschlag/Draloric/BC Components. PTC RESET FUSE 265V 95MA RADIAL. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case Radial, Disc, current - max 600 mA.
In Stock: 486
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Ceramic |
| Voltage - Max | 265V |
| Current - Max | 600 mA |
| Current - Hold (Ih) (Max) | 95 mA |
| Current - Trip (It) | 143 mA |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 56 Ohms |
| Operating Temperature | 0°C ~ 70°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
Submit your RFQ for PTCCL05H950HBE and get a quote within 24 hours.
