Vishay Beyschlag/Draloric/BC Components

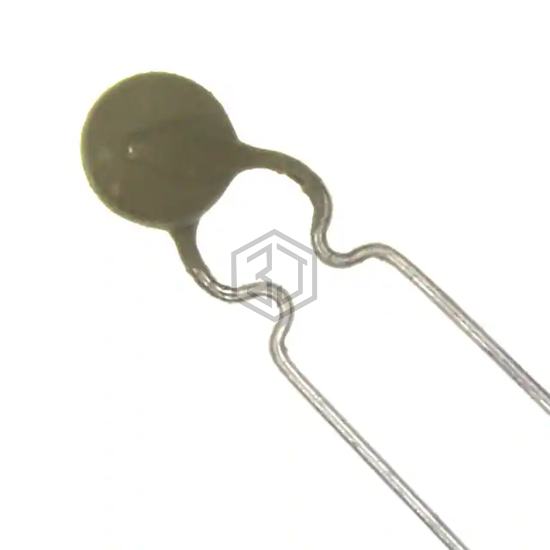

PTC RESET FUSE 60V 94MA RADIAL
PTCCL05H940EBE is a PTC Resettable Fuses manufactured by Vishay Beyschlag/Draloric/BC Components. PTC RESET FUSE 60V 94MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 800 mA.
In Stock: 1,422
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Ceramic |
| Voltage - Max | 60V |
| Current - Max | 800 mA |
| Current - Hold (Ih) (Max) | 94 mA |
| Current - Trip (It) | 145 mA |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 50 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.197" Dia x 0.157" T (5.00mm x 4.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
Submit your RFQ for PTCCL05H940EBE and get a quote within 24 hours.
