Vishay Beyschlag/Draloric/BC Components
PTC RESET FUSE 600V RADIAL DISC

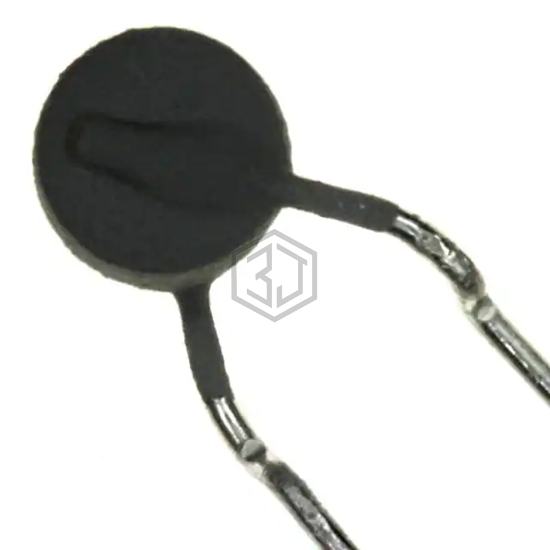

PTCCL05H100SBE is a PTC Resettable Fuses manufactured by Vishay Beyschlag/Draloric/BC Components. PTC RESET FUSE 600V RADIAL DISC. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, package / case Radial, Disc, current - max 2 A.
In Stock: 3,093
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Ceramic |
| Voltage - Max | 600V |
| Current - Max | 2 A |
| Current - Hold (Ih) (Max) | 10 mA |
| Current - Trip (It) | 20 mA |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 1.6 kOhms |
| Operating Temperature | -20°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.197" Dia x 0.177" T (5.00mm x 4.50mm) |
| Height - Seated (Max) | 0.409" (10.40mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
Submit your RFQ for PTCCL05H100SBE and get a quote within 24 hours.
