Vishay Beyschlag/Draloric/BC Components
CAP FILM 3.3UF 5% 1KVDC SCREW

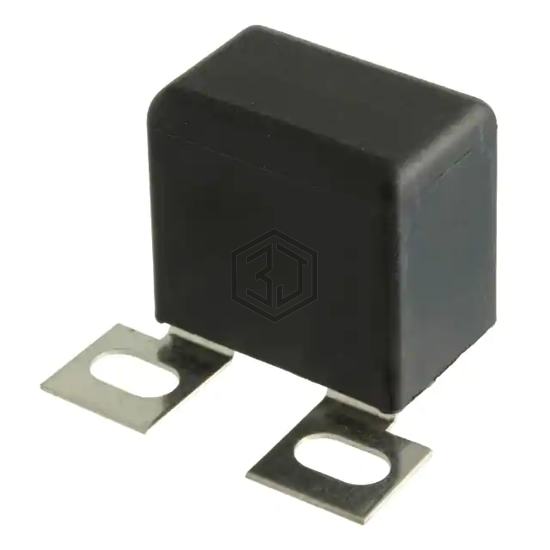

MKP386M533100JT4 is a Film Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP FILM 3.3UF 5% 1KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage rating - dc 1000V (1kV), package / case Rectangular Box.
In Stock: 169
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3.3 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3.5 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.732" L x 1.181" W (44.00mm x 30.00mm) |
| Height - Seated (Max) | 1.811" (46.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | - |
| Applications | Snubber |
| Ratings | - |
| Features | Low ESR |
Submit your RFQ for MKP386M533100JT4 and get a quote within 24 hours.
