Vishay Beyschlag/Draloric/BC Components

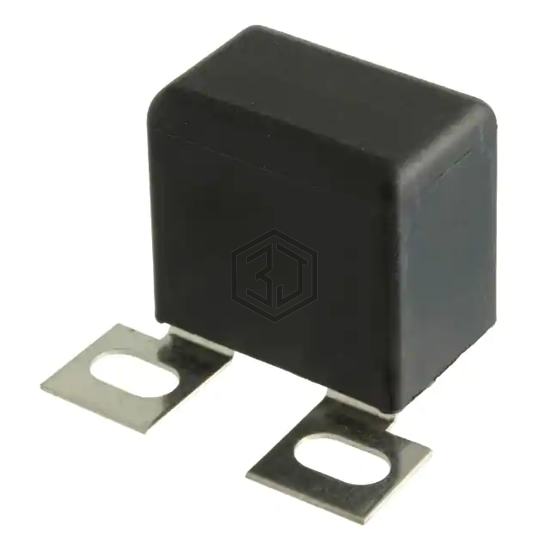

CAP FILM 1UF 5% 1.6KVDC SCREW
MKP386M510160JT4 is a Film Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP FILM 1UF 5% 1.6KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage rating - dc 1600V (1.6kV), package / case Rectangular Box.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 8 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.732" L x 0.866" W (44.00mm x 22.00mm) |
| Height - Seated (Max) | 1.496" (38.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | - |
| Applications | Snubber |
| Ratings | - |
| Features | Low ESR |
Submit your RFQ for MKP386M510160JT4 and get a quote within 24 hours.
