Vishay Beyschlag/Draloric/BC Components

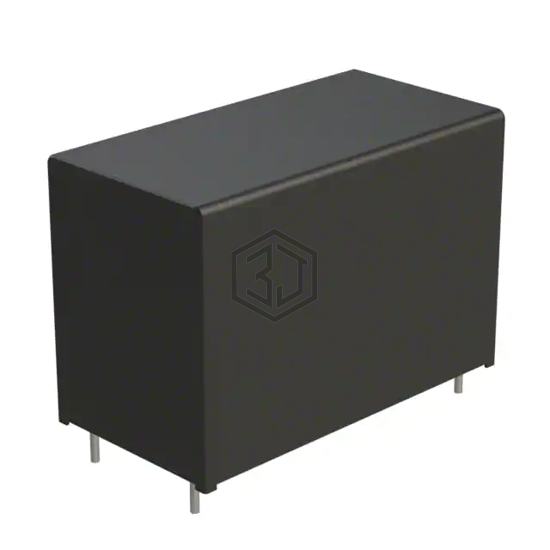

CAP FILM 22UF 5% 1.2KV RADIAL
MKP1848H62212JY5 is a Film Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP FILM 22UF 5% 1.2KV RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 1200V (1.2kV), package / case Radial - 4 Leads.
In Stock: 553
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.8 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.378" W (57.50mm x 35.00mm) |
| Height - Seated (Max) | 2.008" (51.00mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | 85C/85% Humidity; Low ESR, Low ESL |
Submit your RFQ for MKP1848H62212JY5 and get a quote within 24 hours.
