Vishay Beyschlag/Draloric/BC Components

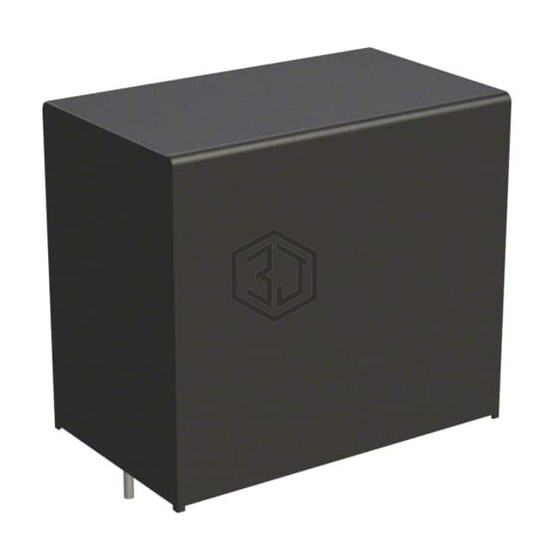

CAP FILM 15UF 10% 1.2KVDC RADIAL
MKP1848H61512KY2 is a Film Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP FILM 15UF 10% 1.2KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 1200V (1.2kV), package / case Radial.
In Stock: 8,948
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 7.3 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 2.264" L x 1.181" W (57.50mm x 30.00mm) |
| Height - Seated (Max) | 1.811" (46.00mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | 85C/85% Humidity; Low ESR, Low ESL |
