Vishay Beyschlag/Draloric/BC Components
CAP FILM 25UF 5% 1KVDC RADIAL

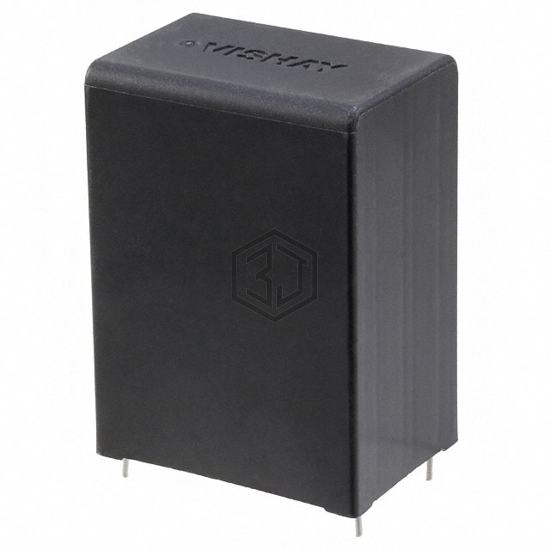

MKP1848C62510JP5 is a Film Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP FILM 25UF 5% 1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1000V (1kV), package / case Radial - 4 Leads.
In Stock: 6,692
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 25 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3.5 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.654" L x 1.181" W (42.00mm x 30.00mm) |
| Height - Seated (Max) | 2.244" (57.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Low ESR; Low ESL; Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1848C62510JP2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 5% 1KVDC RADIAL | 100% | View |
| EFACA18J256E164DH | Eaton - Electronics Division | CAP FILM 25UF 5% 180VAC RAD | 100% | View |
| DCP4I052507GD4KSSD | WIMA | CAP FILM 25UF 10% 600VDC RAD | 91% | View |
| F339MX262531MYM5T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 20% 450VDC RADIAL | 86% | View |
| F339MX262531JYI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 5% 450VDC RADIAL | 86% | View |
| F339MX262531KYI4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 10% 450VDC RADIAL | 86% | View |
