Vishay Beyschlag/Draloric/BC Components

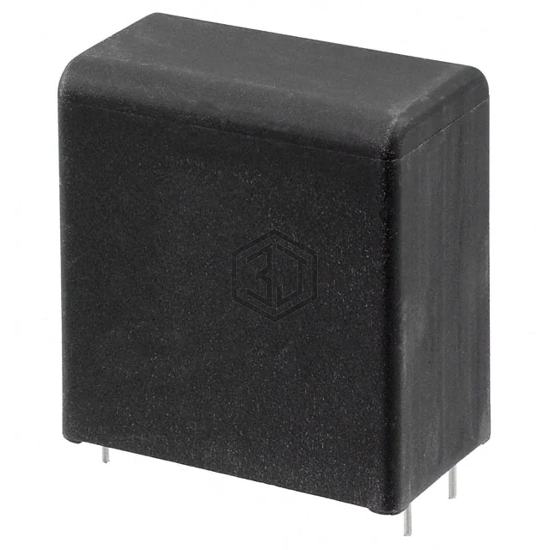

CAP FILM 10UF 5% 1.2KVDC RADIAL
MKP1848C61012JP4 is a Film Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP FILM 10UF 5% 1.2KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature 105°C, voltage rating - dc 1200V (1.2kV), package / case Radial - 4 Leads.
In Stock: 57
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 8 mOhms |
| Operating Temperature | 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.654" L x 0.945" W (42.00mm x 24.00mm) |
| Height - Seated (Max) | 1.732" (44.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Low ESR; Low ESL; Long Life |
Submit your RFQ for MKP1848C61012JP4 and get a quote within 24 hours.
