Vishay Beyschlag/Draloric/BC Components
CAP ALUM 470UF 20% 63V RADIAL

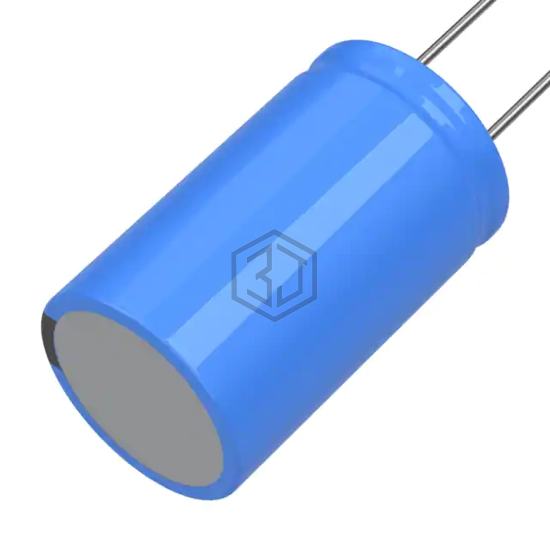

MAL225098473E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 470UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 6,357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Audio, Automotive |
| Ripple Current @ Low Frequency | 836 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | 74 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV250EC3471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 75% | View |
| 477KXM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 35V RADIAL | 72% | View |
| ELXV160ETD471MJ16S | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 65% | View |
| 860080474015 | Würth Elektronik | CAP ALUM 470UF 20% 25V RADIAL | 65% | View |
| EEU-FC1C471L | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V RADIAL | 63% | View |
| MAL211819471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 100V AXIAL | 59% | View |
