Vishay Beyschlag/Draloric/BC Components

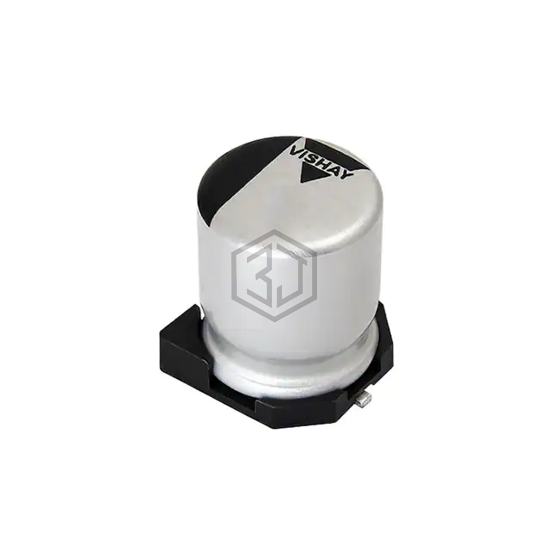

CAP ALUM POLY 330UF 20% 20V SMD
MAL218697556E3 is a Aluminum - Polymer Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM POLY 330UF 20% 20V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 20 V, package / case Radial, Can - SMD.
In Stock: 4,466
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCA1E331MCL1GS | Nichicon | CAP ALUM POLY 330UF 20% 25V SMD | 87% | View |
| MAL218697509E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 330UF 20% 16V SMD | 86% | View |
| PCM1V331MCL1GS | Nichicon | CAP ALUM POLY 330UF 20% 35V SMD | 77% | View |
| PCM1D331MCL6GS | Nichicon | CAP ALUM POLY 330UF 20% 20V SMD | 76% | View |
| PCM1E331MCL1GS | Nichicon | CAP ALUM POLY 330UF 20% 25V SMD | 71% | View |
| A771MS337M1VLAS014 | KEMET | CAP ALUM POLY 330UF 20% 35V SMD | 69% | View |
Submit your RFQ for MAL218697556E3 and get a quote within 24 hours.
