Vishay Beyschlag/Draloric/BC Components

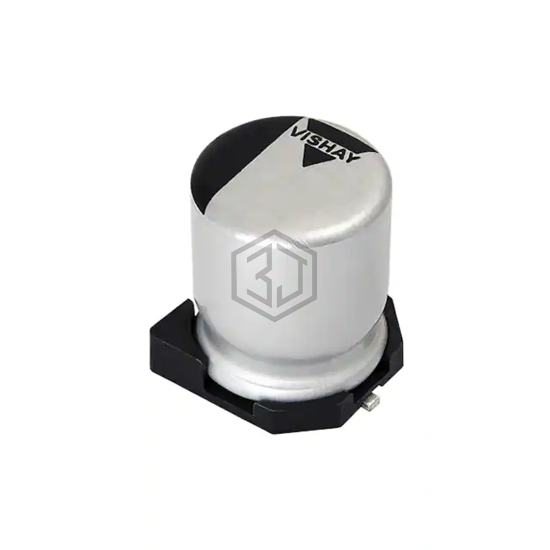

CAP ALUM POLY HYB 33UF 63V SMD
MAL218397803E3 is a Aluminum - Polymer Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM POLY HYB 33UF 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 5,090
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) |
| Surface Mount Land Size | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZC1J330P | Panasonic Electronic Components | CAP ALUM POLY HYB 33UF 63V SMD | 100% | View |
| GYF1J330MCW1GS | Nichicon | 63V 33F HYBRID POLYMER CHIP CHIP | 100% | View |
| 50PFV33M6.3X8 | Rubycon | CAP ALUM POLY HYB 33UF 50V SMD | 90% | View |
| GYC1H330MCQ1GS | Nichicon | CAP ALUM HYBRID 33UF 20% 50V SMD | 78% | View |
| GYC1H330MCW1GS | Nichicon | CAP ALUM POL HY 33UF 20% 50V SMD | 78% | View |
| EEH-ZT1J330V | Panasonic Electronic Components | CAP ALUM POLY HYB 33UF 63V SMD | 75% | View |
Submit your RFQ for MAL218397803E3 and get a quote within 24 hours.
