Vishay Beyschlag/Draloric/BC Components
470UF 25V 10X12MM 105C 4000H

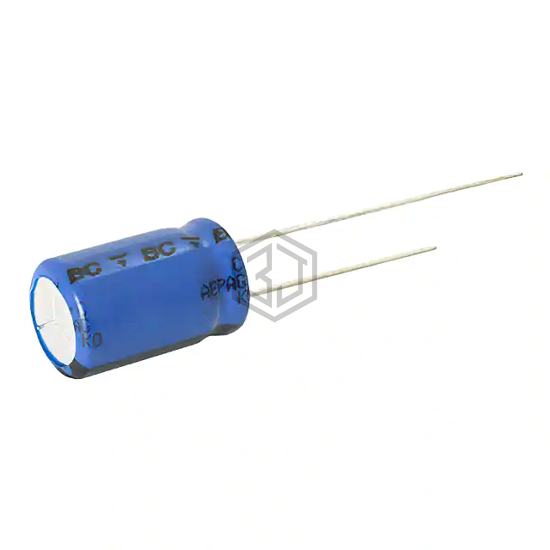

MAL217256471E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. 470UF 25V 10X12MM 105C 4000H. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,689
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.105 A @ 100 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | 48 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-TA1E471SB | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 80% | View |
| UBT1V471MHD8TO | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 73% | View |
| ESW477M025AH2AA | KEMET | CAP ALUM 470UF 20% 25V RADIAL | 70% | View |
| MAL217051471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 69% | View |
| 381LQ471M200H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 200V SNAP | 68% | View |
| ELHS451VSN471MR50S | United Chemi-Con | CAP ALUM 470UF 20% 450V SNAP | 55% | View |
