Vishay Beyschlag/Draloric/BC Components
4700UF 16V 18X20MM 105C 7000H

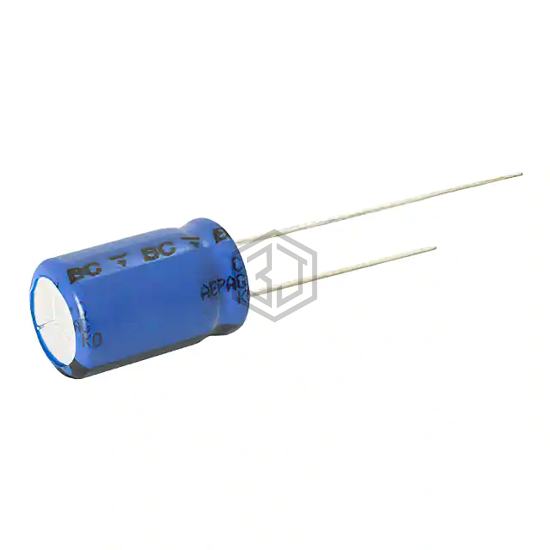

MAL217255472E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. 4700UF 16V 18X20MM 105C 7000H. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.622 A @ 100 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 100 kHz |
| Impedance | 20 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU1H472MELA | Nichicon | CAP ALUM 4700UF 20% 50V SNAP | 76% | View |
| MAL215050472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 35V RADIAL | 74% | View |
| UBY1E472MHL1TN | Nichicon | CAP ALUM 4700UF 20% 25V RADIAL | 74% | View |
| MAL215054472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V RADIAL | 73% | View |
| ELXG800VSN472MA50S | United Chemi-Con | CAP ALUM 4700UF 20% 80V SNAP | 71% | View |
| EEU-FK1A472SB | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RAD TH | 69% | View |
Submit your RFQ for MAL217255472E3 and get a quote within 24 hours.
