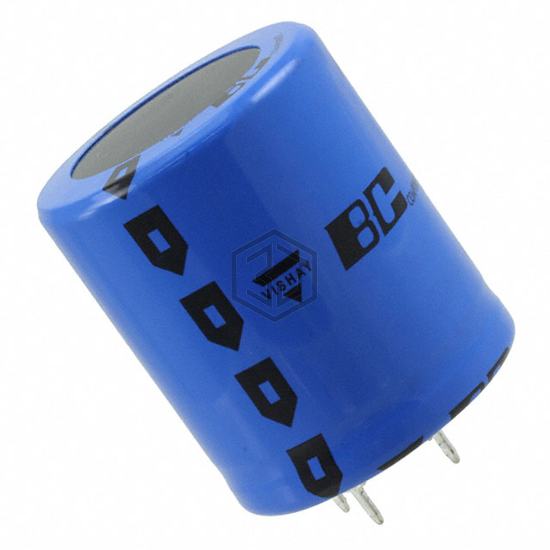

Vishay Beyschlag/Draloric/BC Components
CAP ALUM 220UF 20% 385V SNAP
MAL216358221E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 220UF 20% 385V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 385 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 128
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 385 V |
| ESR (Equivalent Series Resistance) | 525mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.44 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 405 mOhms |
| Lead Spacing | - |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
Submit your RFQ for MAL216358221E3 and get a quote within 24 hours.
