Vishay Beyschlag/Draloric/BC Components
CAP ALUM 150UF 20% 63V SMD

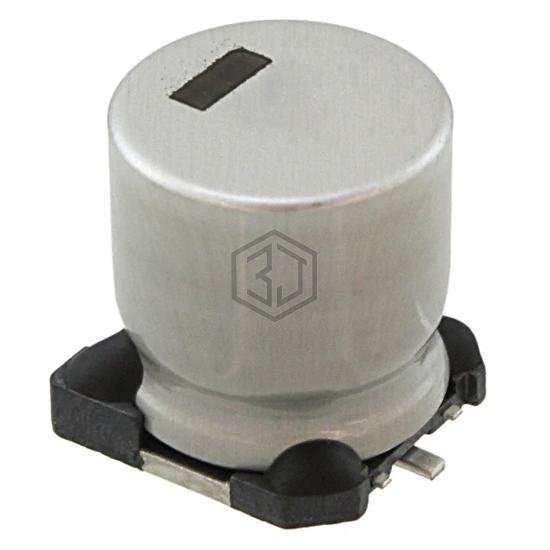

MAL216099804E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 150UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 5,044
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1250 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 240 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.508" L x 0.508" W (12.90mm x 12.90mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216099102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 50V SMD | 82% | View |
| MAL216099703E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 80V SMD | 76% | View |
| MAL216099803E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 63V SMD | 70% | View |
| MAL216099805E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V SMD | 70% | View |
| MAL216099101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V SMD | 60% | View |
| MAL226099704E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 80V SMD | 59% | View |
Submit your RFQ for MAL216099804E3 and get a quote within 24 hours.
