Vishay Beyschlag/Draloric/BC Components

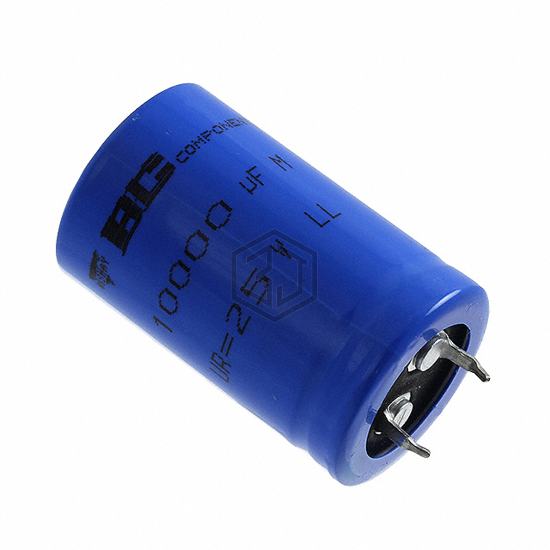

CAP ALUM 10000UF 20% 25V SNAP
MAL215826103E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 10000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 1,701
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 52mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.18 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 44 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205826103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 25V SNAP | 89% | View |
| LGU1E103MELA | Nichicon | CAP ALUM 10000UF 20% 25V SNAP | 85% | View |
| 25MXC10000MEFCSN25X30 | Rubycon | CAP ALUM 10000UF 20% 25V SNAP | 85% | View |
| LP103M035E7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 35V SNAP | 75% | View |
| MAL205875103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V SNAP | 75% | View |
| EKYB100ELL103MLP1S | United Chemi-Con | CAP ALUM 10000UF 20% 10V RADIAL | 54% | View |
Submit your RFQ for MAL215826103E3 and get a quote within 24 hours.
