Vishay Beyschlag/Draloric/BC Components

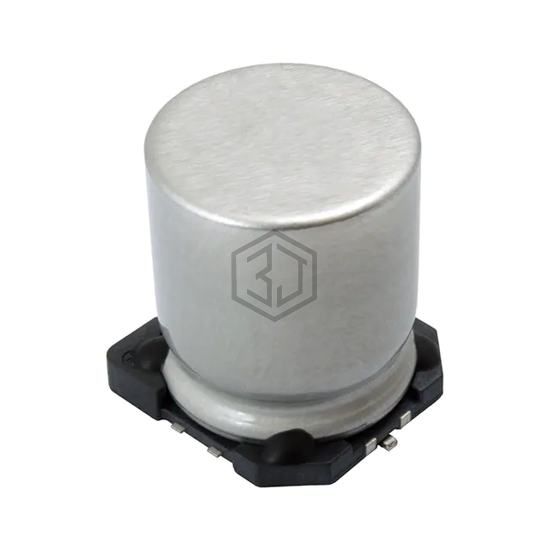

CAP ALUM 15UF 20% 450V SMD
MAL215299705E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 15UF 20% 450V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - SMD.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 110 mA @ 100 Hz |
| Ripple Current @ High Frequency | 275 mA @ 30 kHz |
| Impedance | 2.1 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.654" L x 0.654" W (16.60mm x 16.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for MAL215299705E3 and get a quote within 24 hours.
