Vishay Beyschlag/Draloric/BC Components

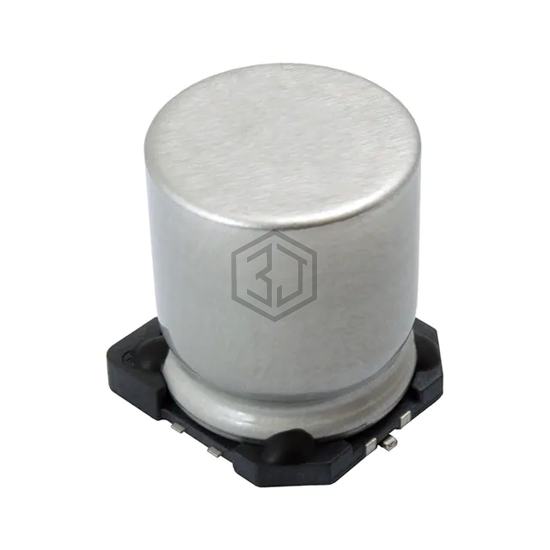

CAP ALUM 5.6UF 20% 450V SMD
MAL215299703E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 5.6UF 20% 450V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - SMD.
In Stock: 5,412
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5.6 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 65 mA @ 100 Hz |
| Ripple Current @ High Frequency | 162.5 mA @ 30 kHz |
| Impedance | 5.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.508" L x 0.508" W (12.90mm x 12.90mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL219299603E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5.6UF 20% 400V SMD | 97% | View |
| MAL215299603E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6.8UF 20% 400V SMD | 86% | View |
| ULH2W5R6MNL1GS | Nichicon | CAP ALUM 5.6UF 20% 450V SMD | 84% | View |
| ULV2W5R6MNL1GS | Nichicon | CAP ALUM 5.6UF 20% 450V SMD | 84% | View |
| ULH2G5R6MNL1GS | Nichicon | CAP ALUM 5.6UF 20% 400V SMD | 83% | View |
| ULT2W5R6MNL1GS | Nichicon | CAP ALUM 5.6UF 20% 450V SMD | 80% | View |
