Vishay Beyschlag/Draloric/BC Components

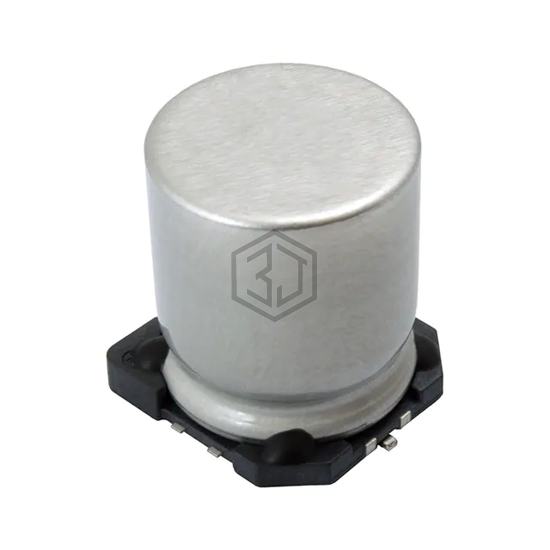

CAP ALUM 4.7UF 20% 450V SMD
MAL215299702E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 4.7UF 20% 450V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - SMD.
In Stock: 8,771
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 50 mA @ 100 Hz |
| Ripple Current @ High Frequency | 125 mA @ 30 kHz |
| Impedance | 5.9 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.508" L x 0.508" W (12.90mm x 12.90mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUJ2G4R7MNQ1ZD | Nichicon | CAP ALUM 4.7UF 20% 400V SMD | 86% | View |
| EXV475M050S9DAA | KEMET | CAP ALUM 4.7UF 20% 50V SMD | 65% | View |
| UT475M100HEHTA | Aillen | CAP. ALUM 4.7UF 100V 20% SMD | 63% | View |
| 865060642004 | Würth Elektronik | CAP ALUM 4.7UF 20% 50V SMD | 60% | View |
| AFK475M63C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 63V SMD | 58% | View |
| EEE-FK1V4R7R | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 35V SMD | 55% | View |
