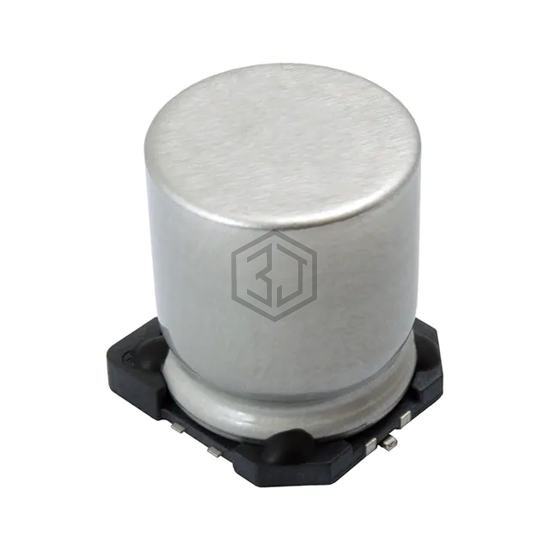

Vishay Beyschlag/Draloric/BC Components
CAP ALUM 2.2UF 20% 450V SMD
MAL215299701E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 2.2UF 20% 450V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - SMD.
In Stock: 3,524
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1500 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 30 mA @ 100 Hz |
| Ripple Current @ High Frequency | 75 mA @ 30 kHz |
| Impedance | 14.5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.413" L x 0.413" W (10.50mm x 10.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUX2G1R8MNL1GS | Nichicon | CAP ALUM 1.8UF 20% 400V SMD | 72% | View |
| UUB2G1R8MNL1GS | Nichicon | CAP ALUM 1.8UF 20% 400V SMD | 72% | View |
| ULV2H1R8MNL1GS | Nichicon | CAP ALUM 1.8UF 20% 500V SMD | 70% | View |
| 35SZV2.2M4X5.5 | Rubycon | CAP ALUM 2.2UF 20% 35V SMD | 60% | View |
| ULT2H1R8MNL1GS | Nichicon | CAP ALUM 1.8UF 20% 500V SMD | 58% | View |
| ATB225M050 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2.2UF 20% 50V SMD | 57% | View |
