Vishay Beyschlag/Draloric/BC Components

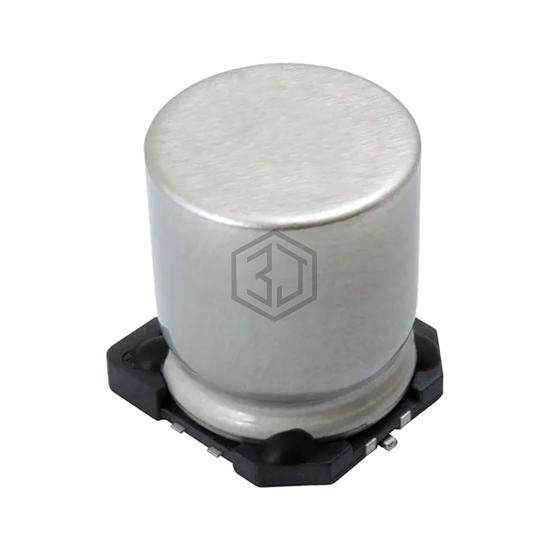

CAP ALUM 22UF 20% 400V SMD
MAL215299607E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 22UF 20% 400V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - SMD.
In Stock: 3,729
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 140 mA @ 100 Hz |
| Ripple Current @ High Frequency | 350 mA @ 30 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215099903E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 100V SMD | 66% | View |
| MAL215371229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 50V SMD | 64% | View |
| 865060643006 | Würth Elektronik | CAP ALUM 22UF 20% 50V SMD | 58% | View |
| EEE-FP0J220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 6.3V SMD | 53% | View |
| EEE-FT1E220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V SMD | 53% | View |
| EEE-FN1V220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V SMD | 53% | View |
