Vishay Beyschlag/Draloric/BC Components

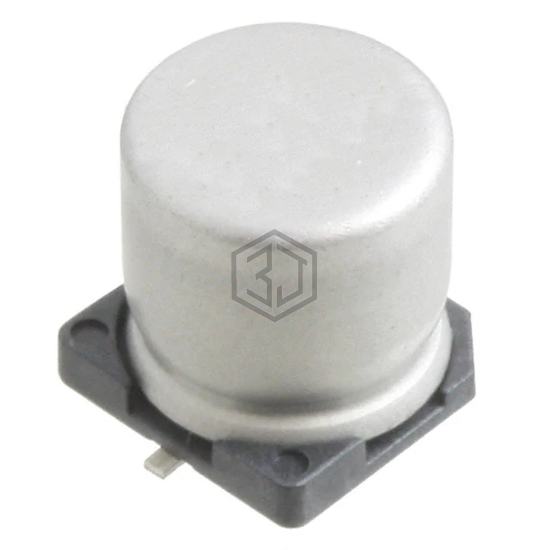

CAP ALUM 330UF 20% 25V SMD
MAL215099601E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 330UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,388
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2500 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 640 mA @ 100 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1E331AP | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V SMD | 96% | View |
| EEE-FN1V331UV | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 84% | View |
| EEE-FN1C331V | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V SMD | 80% | View |
| EEE-FT1V331AV | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 77% | View |
| VZU331M1VTR-0810S | SURGE | CAP ALUM 330UF 20% 35V SMD | 72% | View |
| EEV-FK1H331V | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V SMD | 70% | View |
Submit your RFQ for MAL215099601E3 and get a quote within 24 hours.
