Vishay Beyschlag/Draloric/BC Components
CAP ALUM 150UF 20% 63V SMD

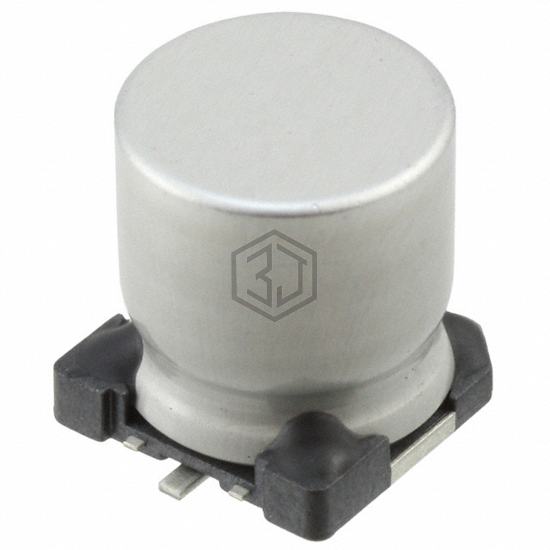

MAL214699807E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 150UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 1,993
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 390 mA @ 100 Hz |
| Ripple Current @ High Frequency | 650 mA @ 100 kHz |
| Impedance | 210 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for MAL214699807E3 and get a quote within 24 hours.
