Vishay Beyschlag/Draloric/BC Components
CAP ALUM 330UF 20% 35V SMD

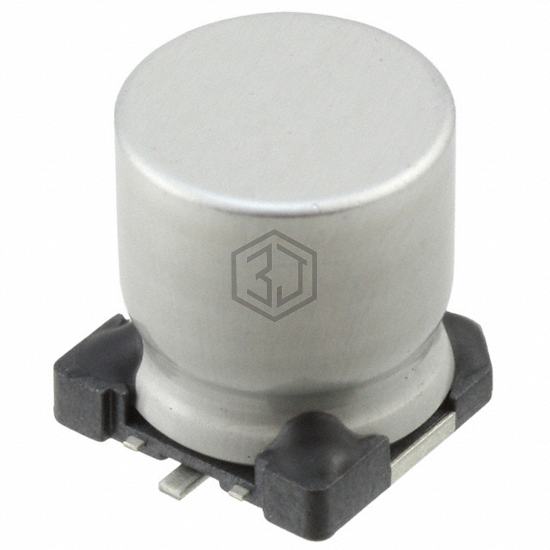

MAL214699005E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 330UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,066
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 715 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | 75 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUJ331M1VTR-1313S | SURGE | CAP ALUM 330UF 20% 35V SMD | 83% | View |
| MAL214099012E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V SMD | 82% | View |
| MAL214699602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V SMD | 81% | View |
| UUE1H331MNS1MS | Nichicon | CAP ALUM 330UF 20% 50V SMD | 78% | View |
| MAL216099601E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V SMD | 73% | View |
| UUE1E331MNS1MS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 72% | View |
