Vishay Beyschlag/Draloric/BC Components

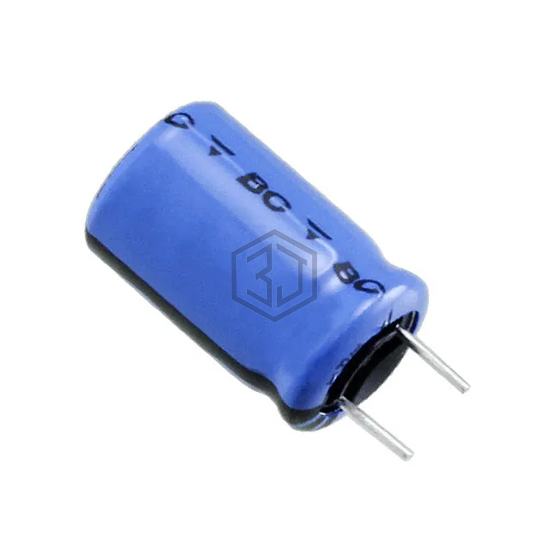

CAP ALUM 330UF 20% 25V RADIAL
MAL213666331E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,385
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 522.9 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 84 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK331M1EBK-0820S | Surge | CAP ALUM 25V POLAR | 92% | View |
| MAL213690336E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 84% | View |
| UVZ1E331MPH | Nichicon | CAP ALUM 330UF 20% 25V RADIAL | 84% | View |
| EKMQ350ELL331MJC5S | United Chemi-Con | CAP ALUM 330UF 20% 35V RADIAL | 73% | View |
| EKMG101ETS331ML25S | United Chemi-Con | CAP ALUM 330UF 20% 100V RADIAL | 70% | View |
| UBW1H331MHD1TO | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 67% | View |
