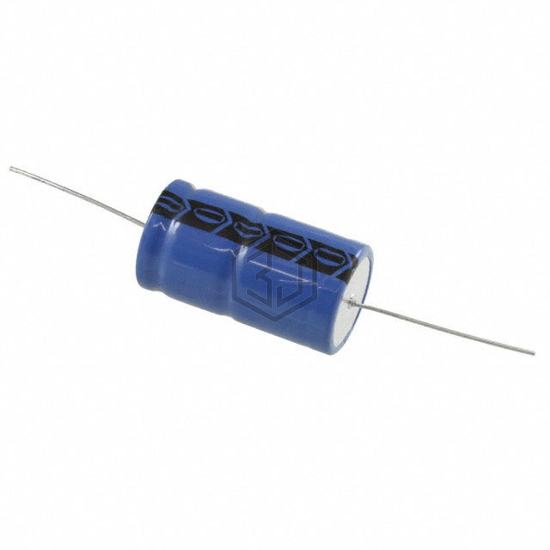

Vishay Beyschlag/Draloric/BC Components
CAP ALUM 2200UF 25V AXIAL
MAL213216222E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 2200UF 25V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Axial, Can.
In Stock: 3,214
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 90mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.85 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKYB160ELL222MJ30S | United Chemi-Con | CAP ALUM 2200UF 20% 16V RADIAL | 78% | View |
| MAL211945222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 16V AXIAL | 73% | View |
| EKMH800VNN222MQ35S | United Chemi-Con | CAP ALUM 2200UF 20% 80V SNAP | 69% | View |
| LKS1J222MESB | Nichicon | CAP ALUM 2200UF 20% 63V SNAP | 69% | View |
| MAL225638222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V SNAP | 67% | View |
| LKG1H222MESCCK | Nichicon | CAP ALUM 2200UF 20% 50V SNAP | 60% | View |
