Vishay Beyschlag/Draloric/BC Components
CAP ALUM 220UF 20% 100V AXIAL

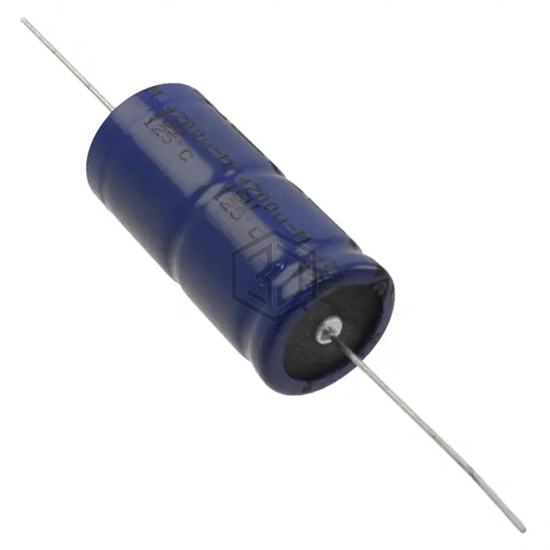

MAL212019221E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 220UF 20% 100V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 100 V, package / case Axial, Can.
In Stock: 624
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 181mOhm |
| Lifetime @ Temp. | 8000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | - |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.96 A @ 10 kHz |
| Impedance | 179 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXE101ELL221ML25S | United Chemi-Con | CAP ALUM 220UF 20% 100V RADIAL | 85% | View |
| PEG124MF322VQE4 | KEMET | CAP ALUM 220UF 63V AXIAL | 70% | View |
| 35RX30220M10X12.5 | Rubycon | CAP ALUM 220UF 20% 35V RADIAL | 63% | View |
| EGXL500EC3221MJ20S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 57% | View |
| EGXL500ETD221MJ20S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 57% | View |
| UBX1H221MPL | Nichicon | CAP ALUM 220UF 20% 50V RADIAL | 56% | View |
