Vishay Beyschlag/Draloric/BC Components

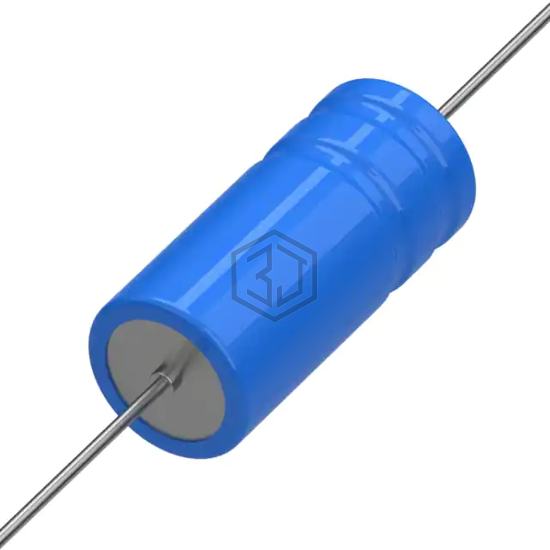

CAP ALUM 100UF 16V AXIAL
MAL211935101E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 100UF 16V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 16 V, package / case Axial, Can.
In Stock: 9,005
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 2.1Ohm @ 100Hz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 170 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 1.3 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia x 0.709" L (8.00mm x 18.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1C101MPD | Nichicon | CAP ALUM 100UF 20% 16V RADIAL | 82% | View |
| MAL211926101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 25V AXIAL | 75% | View |
| UBX1E101MPL1TD | Nichicon | CAP ALUM 100UF 20% 25V RADIAL | 72% | View |
| UBX1H101MPL | Nichicon | CAP ALUM 100UF 20% 50V RADIAL | 68% | View |
| MAL211924101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 10V AXIAL | 68% | View |
| UBX1V101MPL1TD | Nichicon | CAP ALUM 100UF 20% 35V RADIAL | 66% | View |
Submit your RFQ for MAL211935101E3 and get a quote within 24 hours.
