Vishay Beyschlag/Draloric/BC Components

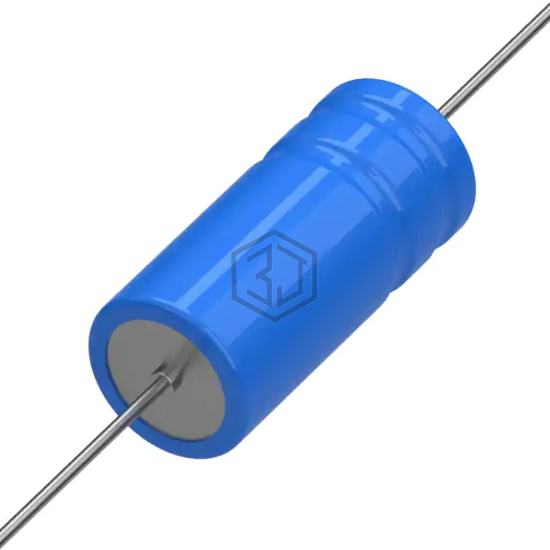

CAP ALUM 22UF 63V AXIAL
MAL211928229E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 22UF 63V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 63 V, package / case Axial, Can.
In Stock: 2,319
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 5.1Ohm @ 100Hz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 110 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 2.8 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia x 0.709" L (8.00mm x 18.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211938229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 63V AXIAL | 100% | View |
| 600D256G060DD4 | Vishay Sprague | CAP ALUM 25UF 60V AXIAL | 87% | View |
| UBW1J220MPD1TA | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 81% | View |
| UBX1V220MPL1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 73% | View |
| 600D226F100DG4 | Vishay Sprague | CAP ALUM 22UF 100V AXIAL | 70% | View |
| UBX2A220MPL1TD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 62% | View |
Submit your RFQ for MAL211928229E3 and get a quote within 24 hours.
