Vishay Beyschlag/Draloric/BC Components

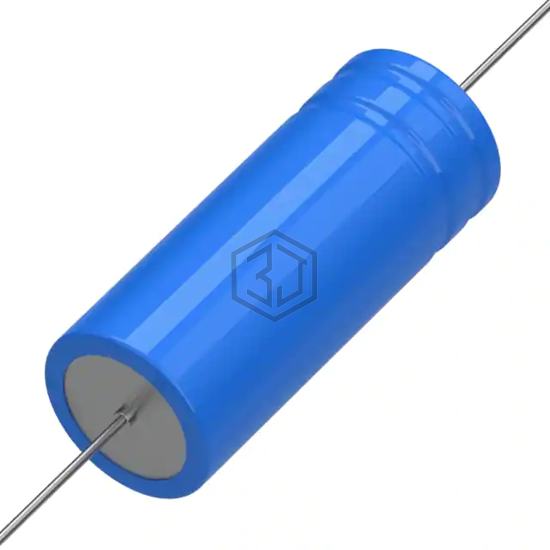

CAP ALUM 680UF 10V AXIAL
MAL211924681E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 680UF 10V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 10 V, package / case Axial, Can.
In Stock: 8,066
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 470mOhm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 640 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 380 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211915681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 16V AXIAL | 72% | View |
| MAL211945681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 16V AXIAL | 72% | View |
| UBX1H681MHL1TN | Nichicon | CAP ALUM 680UF 20% 50V RADIAL | 69% | View |
| UBX1J681MHL | Nichicon | CAP ALUM 680UF 20% 63V RADIAL | 66% | View |
| MAL211816681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V AXIAL | 61% | View |
| MAL211818681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V AXIAL | 58% | View |
Submit your RFQ for MAL211924681E3 and get a quote within 24 hours.
