Vishay Beyschlag/Draloric/BC Components
CAP ALUM 33UF 20% 200V T/H

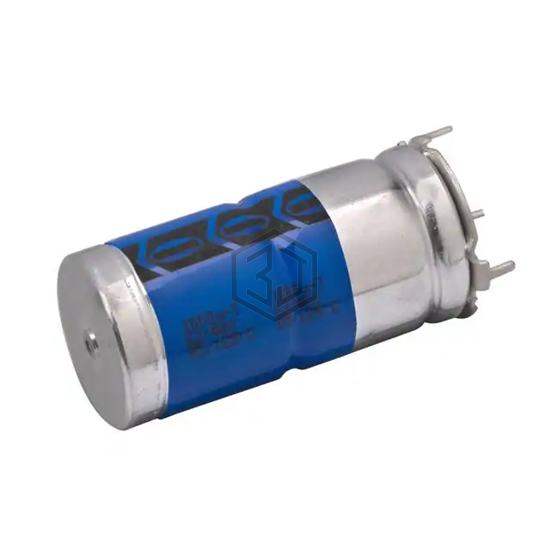

MAL211890002E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 33UF 20% 200V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 200 V, package / case Radial, Can - Mounting Ring - 4 Lead.
In Stock: 7,605
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 2.11Ohm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 290 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 1.11 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.591" Dia (15.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Mounting Ring - 4 Lead |
Submit your RFQ for MAL211890002E3 and get a quote within 24 hours.
