Vishay Beyschlag/Draloric/BC Components
CAP ALUM 47000UF 63V SCREW

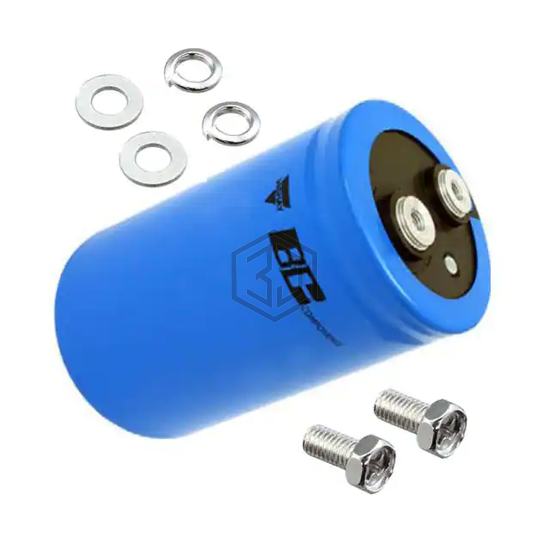

MAL210658473E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 47000UF 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,392
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 8mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 8 mOhms |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 2.992" Dia (76.00mm) |
| Height - Seated (Max) | 4.437" (112.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D800HPN473MEA5U | United Chemi-Con | CAP ALUM 47000UF 20% 80V SCREW | 87% | View |
| E36D800HPC473ME92U | United Chemi-Con | CAP ALUM 47000UF 20% 80V SCREW | 72% | View |
| LNT2A473MSEB | Nichicon | CAP ALUM 47000UF 20% 100V SCREW | 68% | View |
| ALS70C473QS200 | KEMET | CAP ALUM 47000UF 20% 200V SCREW | 66% | View |
| HVMLS473M5R0EB0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 47000UF 20% 5V FLATPACK | 61% | View |
| HVMLS473M5R0EB0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 47000UF 20% 5V FLATPACK | 61% | View |
Submit your RFQ for MAL210658473E3 and get a quote within 24 hours.
