Vishay Beyschlag/Draloric/BC Components

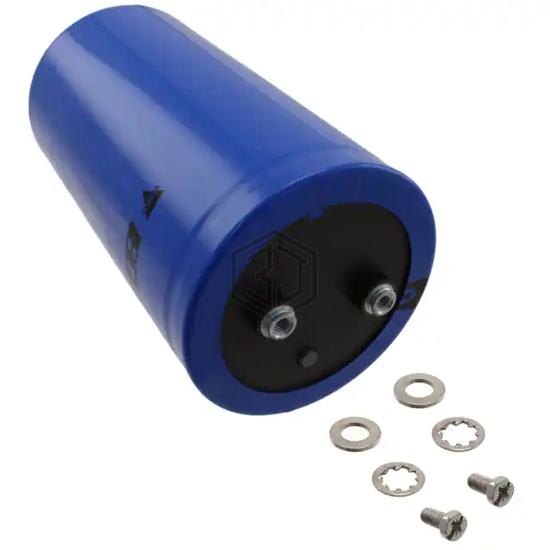

CAP ALUM 5600UF 20% 450V SCREW
MAL210217562E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 5600UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,896
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 23mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 25.95 A @ 10 kHz |
| Impedance | 15 mOhms |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 2.992" Dia (76.00mm) |
| Height - Seated (Max) | 5.748" (146.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37F421CPN562MEB7U | United Chemi-Con | CAP ALUM 5600UF 20% 420V SCREW | 95% | View |
| LNC2G562MSEG | Nichicon | CAP ALUM 5600UF 20% 400V SCREW | 91% | View |
| LNC2W562MTEJ | Nichicon | CAP ALUM 5600UF 20% 450V SCREW | 91% | View |
| LNC2G562MTEG | Nichicon | CAP ALUM 5600UF 20% 400V SCREW | 91% | View |
| LNC2G562MSEGBN | Nichicon | CAP ALUM 5600UF 20% 400V SCREW | 91% | View |
| E37F351CPN562MEA5U | United Chemi-Con | CAP ALUM 5600UF 20% 350V SCREW | 86% | View |
Submit your RFQ for MAL210217562E3 and get a quote within 24 hours.
