Vishay Beyschlag/Draloric/BC Components

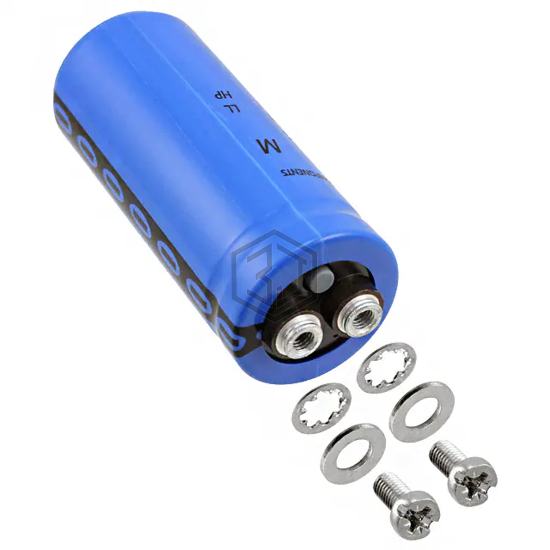

CAP ALUM 4700UF 20% 100V SCREW
MAL210169472E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 4700UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,054
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 26mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.9 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 16 mOhms |
| Lead Spacing | 0.504" (12.80mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.280" (108.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PEH200PD4470MU2 | KEMET | CAP ALUM 4700UF 20% 100V SCREW | 91% | View |
| E36D251HPN472MCA5M | United Chemi-Con | CAP ALUM 4700UF 20% 250V SCREW | 70% | View |
| E36D600LPN472TA54N | United Chemi-Con | CAP ALUM 4700UF 60V SCREW | 67% | View |
| MAL210435472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 350V SCREW | 60% | View |
| ALS71A472KE200 | KEMET | CAP ALUM 4700UF 20% 200V SCREW | 54% | View |
| ALS31A472NF400 | KEMET | CAP ALUM 4700UF 20% 400V SCREW | 52% | View |
Submit your RFQ for MAL210169472E3 and get a quote within 24 hours.
