Vishay Beyschlag/Draloric/BC Components

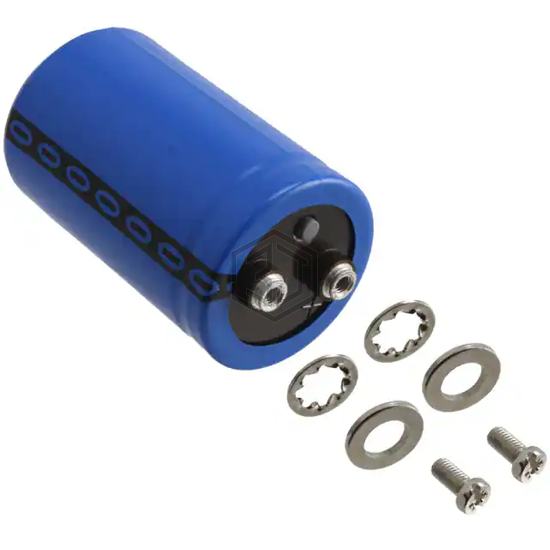

CAP ALUM 33000UF 20% 40V SCREW
MAL210167333E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 33000UF 20% 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,470
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 13mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 10 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.496" (88.80mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D350HPN333MA79U | United Chemi-Con | CAP ALUM 33000UF 20% 35V SCREW | 91% | View |
| A331LM333M063A | KEMET | 33000U 3VV | 76% | View |
| LNT1H333MSE | Nichicon | CAP ALUM 33000UF 20% 50V SCREW | 73% | View |
| ALS70A333KE063 | KEMET | CAP ALUM 33000UF 20% 63V SCREW | 72% | View |
| LNR1V333MSE | Nichicon | CAP ALUM 33000UF 20% 35V SCREW | 69% | View |
| LNR1J333MSEB | Nichicon | CAP ALUM 33000UF 20% 63V SCREW | 67% | View |
Submit your RFQ for MAL210167333E3 and get a quote within 24 hours.
