Vishay Beyschlag/Draloric/BC Components

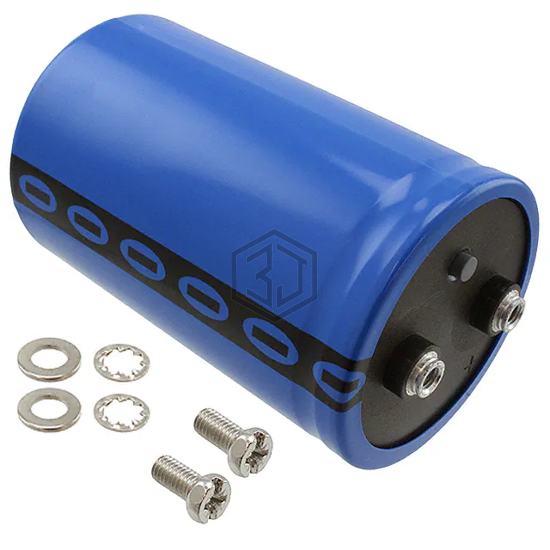

CAP ALUM 22000UF 20% 100V SCREW
MAL210159223E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 22000UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,211
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 11mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.8 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 8 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.559" Dia (65.00mm) |
| Height - Seated (Max) | 4.358" (110.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210659223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 100V SCREW | 88% | View |
| ALS31A223KE063 | KEMET | CAP ALUM 22000UF 20% 63V SCREW | 78% | View |
| ALS80H223DF063 | KEMET | CAP ALUM 22000UF 20% 63V SCREW | 65% | View |
| ALS81C223QM200 | KEMET | CAP ALUM 22000UF 20% 200V SCREW | 58% | View |
| ALS70C223NP200 | KEMET | CAP ALUM 22000UF 20% 200V SCREW | 55% | View |
| MAL210157223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 40V SCREW | 52% | View |
Submit your RFQ for MAL210159223E3 and get a quote within 24 hours.
