Vishay Beyschlag/Draloric/BC Components

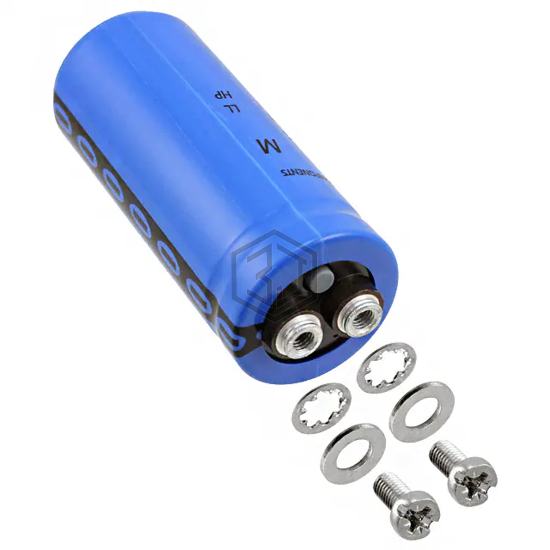

CAP ALUM 3300UF 20% 100V SCREW
MAL210129332E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 3300UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,602
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 35mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.6 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 21 mOhms |
| Lead Spacing | 0.504" (12.80mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.413" (86.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLP332M063EA1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 63V FLATPACK | 73% | View |
| E36D201HPN332MC67U | United Chemi-Con | CAP ALUM 3300UF 20% 200V SCREW | 64% | View |
| DCMC332T400CC5F | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 400V SCREW | 56% | View |
| LNU2H332MSEG | Nichicon | CAP ALUM 3300UF 20% 500V SCREW | 55% | View |
| E37X421CPN332MDB7U | United Chemi-Con | CAP ALUM 3300UF 20% 420V SCREW | 55% | View |
| LNY2G332MSEFBB | Nichicon | CAP ALUM 3300UF 20% 400V SCREW | 51% | View |
