Vishay Beyschlag/Draloric/BC Components
CAP ALUM 47000UF 20% 63V SCREW

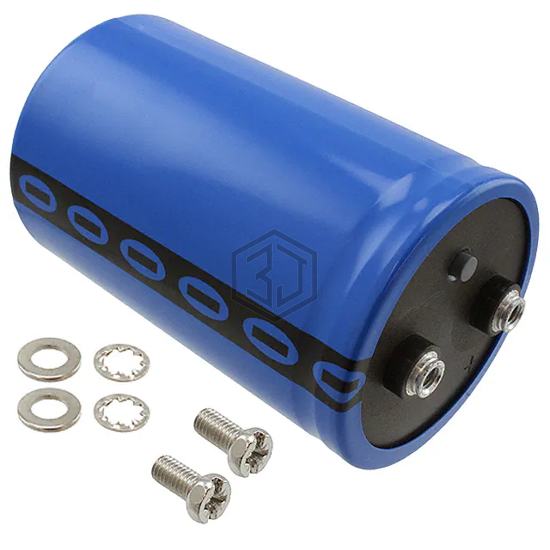

MAL210118473E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 47000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,092
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 10mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 20.28 A @ 10 kHz |
| Impedance | 8 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.559" Dia (65.00mm) |
| Height - Seated (Max) | 4.165" (105.80mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DCMC463U075BF2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 46000UF 75V SCREW | 87% | View |
| 100LSW47000M77X141 | Rubycon | CAP ALUM 47000UF 20% 100V SCREW | 81% | View |
| LNR1J473MSE | Nichicon | CAP ALUM 47000UF 20% 63V SCREW | 77% | View |
| B41458B7479M000 | EPCOS - TDK Electronics | CAP ALUM 47000UF 20% 40V SCREW | 73% | View |
| MAL210619473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 100V SCREW | 67% | View |
| MAL210636473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 25V SCREW | 62% | View |
