Vishay Beyschlag/Draloric/BC Components
CAP ALUM 15000UF 20% 63V SCREW

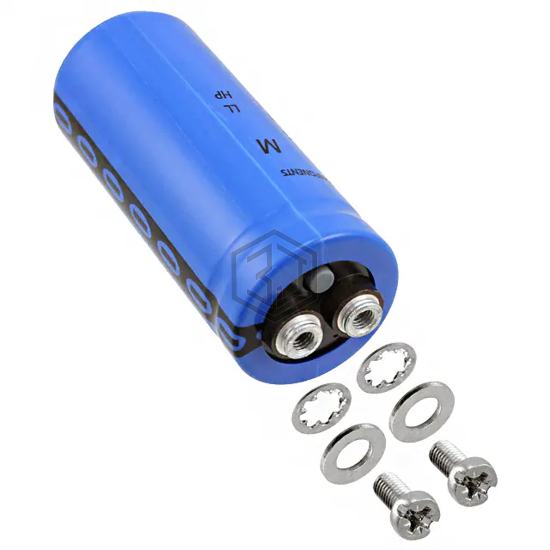

MAL210118153E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 15000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,376
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 19mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 14 mOhms |
| Lead Spacing | 0.504" (12.80mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.280" (108.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS30A153DB040 | KEMET | CAP ALUM 15000UF 20% 40V SCREW | 84% | View |
| LNR1K153MSE | Nichicon | CAP ALUM 15000UF 20% 80V SCREW | 75% | View |
| MAL210159153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 100V SCREW | 75% | View |
| 36DY153F250DJ2A | Vishay Sprague | CAP ALUM 15000UF 250V SCREW | 56% | View |
| ALS81G153NT350 | KEMET | CAP ALUM 15000UF 20% 350V SCREW | 55% | View |
| ALS81C153NT350 | KEMET | CAP ALUM 15000UF 20% 350V SCREW | 55% | View |
Submit your RFQ for MAL210118153E3 and get a quote within 24 hours.
